EqGPT

A pretrained transformer proposes equations and is fine-tuned on candidates ranked by their fit to data.

algorithm

eqgpt

score

EqGPT reward max

cost

heavy

derivatives

finite_diff

equation form

EVOLUTION HOMOGENEOUS

data layout

grid scattered

Usage

import kd
from kd import EqGPTConfig

dataset = kd.generate_burgers_data(nx=256, nt=101, nu=0.1, seed=42)
model = kd.Model(algorithm="eqgpt", generations=15, config=EqGPTConfig.burgers_preset())
model.fit(dataset)

The checkpoint is distributed by the authors of the paper below and is used here with their permission. EqGPTConfig.burgers_preset() in this example sets sparsity_alpha=0.02.

Main parameters

Parameter	Default	Resume	Description
`samples_per_epoch`	`400`	resume-safe	GPT samples per Runner iteration.
`top_k`	`10`	resume-safe	Elite-pool and fine-tune slice size; on a resume a smaller value truncates the restored pool, while a larger one does not widen it (the merge never grows a non-empty pool).
`sparsity_alpha`	required	resume-safe	Problem-specific sparsity weight.
`finetune_lr`	`1e-05`	resume-safe	GPT fine-tuning learning rate.
`exploration_rate`	`0.2`	resume-safe	Sampling exploration rate.

All fields of EqGPTConfig

Field	Type	Default
`sparsity_alpha`	`float`	required
`seed`	`int`	`0`
`samples_per_epoch`	`int`	`400`
`top_k`	`int`	`10`
`finetune_lr`	`float`	`1e-05`
`finetune_steps`	`int`	`5`
`exploration_rate`	`float`	`0.2`
`max_length`	`int`	`49`
`variables`	`tuple[str, ...] \\| None`	`None`
`start_words`	`tuple[str, ...]`	`('S', 'ut', '+')`
`masked_tokens`	`frozenset[int]`	`frozenset()`
`weights_path`	`Path \\| None`	`None`
`asset_dir`	`Path \\| None`	`None`
`case_filter`	`str \\| None`	`None`
`wave_pkl_path`	`Path \\| None`	`None`
`v1_asset_dir`	`Path \\| None`	`None`
`reward_points_per_window`	`int`	`50`
`coeff_points_per_window`	`int`	`100`
`primary_case`	`str \\| None`	`None`
`steady`	`bool`	`False`
`steady_activation`	`Literal['sin', 'rational'] \\| None`	`None`
`steady_boundary_delete_num`	`int \\| None`	`None`
`steady_boundary_grid`	`tuple[float, ...] \\| None`	`None`
`steady_polar_eval`	`bool`	`False`
`steady_constant_column`	`bool`	`False`
`steady_train_points`	`int`	`10000`
`steady_validate_points`	`int`	`1000`
`steady_train_iters`	`int`	`50000`
`steady_surrogate_seed`	`int`	`525`

Search space

EqGPT samples equations from a fixed vocabulary of terms, then fits their coefficients against data. The single-case evolution path uses one field u, time axis t and one to three spatial axes named x, y or z. In evolution mode the prefix S ut + fixes the left-hand side, and right-hand-side terms combine atoms by multiplication, division and addition. The vocabulary comes with KD; no candidate-term library is supplied by the caller.

Sampling masks tokens containing t, tokens referring to absent axes, derivatives beyond the active provider's order, tokens without an IR mapping, and masked_tokens. On a time axis and one spatial axis x, the evolution finite-difference path admits these 21 atoms: u, ux, uxx, uxxx, ux^2, u^2, u^3, x, x^2, x^4, sin(u), sinx, exp(x), (uux)x, (uux)xx, (u^3)xx, (u^4)xx, (1/u)xx, (u^-2*ux)x, (u(u^2)xx)xx and (uxx+ux/x)^2. Higher atomic x-derivatives exceed that provider's cap; mixed space-time terms, explicit time dependence, sqrt and sinh are not in this search space.

Sentence gates give zero reward to the term combinations {u, sin(u)}, {u, sinh(u)}, {sin(u), sinh(u)}, {u, u^2, u^3} and {x, sinx}. Another gate requires every declared axis to occur unless the sentence contains Laplace. The pinned ut covers time, so an evolution candidate must also represent its spatial axes. These gates act before fitting.

For a steady problem on scattered (x, y) coordinates, configure steady, steady_activation and start_words=["S"] together. This mode trains its own surrogate before search. sparsity_alpha is required because the appropriate penalty depends on the problem; the packaged presets supply explicit values. Boundary deletion (steady_boundary_delete_num) counts cells on a grid that by default consists of the distinct coordinate values in the data, so a grid row or column without data points is missing from it. steady_boundary_grid gives the grid explicitly, and the presets that enable boundary deletion set it; the dataset name does not affect the grid.

Method

The proposer is a decoder-only transformer with six layers, eight heads, model dimension 768 and a context of 50, over 56 vocabulary tokens plus a pad slot. It is pretrained on equations collected from mathematical handbooks. Sampling alternates between a term token and E, +, * or /. With probability exploration_rate, a token is drawn uniformly from the legal set; otherwise the transformer evaluates the current prefix.

Each accepted sentence converts to KD IR terms, and the platform executes one column per term. Least squares fits the relation and the reward combines centered R² with a penalty on the column count. Each epoch merges candidates into a reward-deduplicated elite pool of size top_k, then fine-tunes on that pool with Adam at finetune_lr for finetune_steps steps. One epoch is one KD iteration, controlled by generations.

Result interpretation

The reward is R² * (1 - sparsity_alpha * log10(k)), where k counts distinct columns including the pinned left-hand-side column. R² measures the derivative fit in evolution mode. The penalty lowers the attainable reward as columns are added; it is not an NMSE alone. A zero reward can result from a sentence gate, while a negative reward is a fitted relation worse than predicting the mean. Candidates that fail execution or matrix construction can be discarded before reaching the pool; no candidate is an invalid result.

model.best_expr_ lists structural terms without fitted coefficients. model.result_.equation carries the native fitted coefficients aligned with those terms. Evolution-mode final coefficients and NMSE are evaluated on the full coefficient domain against the un-negated time derivative; that domain can differ from the sampled reward domain. IR uses names such as u_x, u_xx, n2(u), diff_x(mul(u, u_x)) and diff2_x(mul(u, u_x)), rather than the vocabulary's ux, uxx, u^2, (uux)x and (uux)xx.

The per-epoch record includes pool reward statistics and fine-tuning loss. A low reward warrants checking whether the required atoms and combinations are expressible before increasing the sample budget. Because the prior was trained on named textbook equations, a familiar law can be proposed from that prior as well as selected by its fit to data.

Python setup

Pretrained model

The checkpoint is downloaded from the KD Hub mirror on first use and cached. An uncached run needs network access. KD_EQGPT_ASSET_DIR can point to a local directory containing gpt_model/PDEGPT_wave_breaking.pt; the Python API also accepts EqGPTConfig(weights_path=...) or asset_dir. The mirror is timeoutHao/KD-data, with a pinned revision and SHA-256 verification. Multi-case wave mode also needs WaveBreaking.pkl and per-case surrogates; KD_V1_WAVE_ASSETS selects local assets instead of the Hub copy. The dataset passed to fit in this mode must equal the data of the primary case (primary_case): axis order, field names and every coordinate and field value are compared, and only the name may differ.

References

Xu et al. (2025). "Generative discovery of partial differential equations by learning from math handbooks". Nat. Commun. 16, 10255. Paper

Code: woshixuhao/EqGPT

Implementation notes. KD drives the published checkpoint through its own sampler and reward. The unused decoder-encoder attention submodule is omitted; forward equivalence was checked on checkpoint logits, and the vocabulary is copied byte for byte. Sampling follows the same legal mechanism without reproducing the reference's random stream. Evolution mode uses platform finite differences where the reference used autograd surrogates, which changes the available high-order atoms. Malformed and length-truncated sentences are discarded; degenerate reward matrices receive zero, and least squares uses rcond=None. The reference's fixed elite-pool size is configurable as top_k.

The plugin runs the single-case pipeline and the multi-case wave-breaking pipeline, where one structure is fitted across 12 experiments. Multi-case reward averages the cases scored successfully.

Worked example

The run below uses synthetic Burgers data: a 256 × 101 grid over x in [-1, 1] with periodic boundaries and t in [0, 1], started from u(x, 0) = -sin(pi x) and integrated at a viscosity of 0.1. The nonlinear term carries the profile toward the origin and steepens it there (the largest |u_x| of the run, 4.1, falls at t = 0.3), while diffusion flattens the whole field, from an amplitude of 1.0 at t = 0 to 0.32 at t = 1.

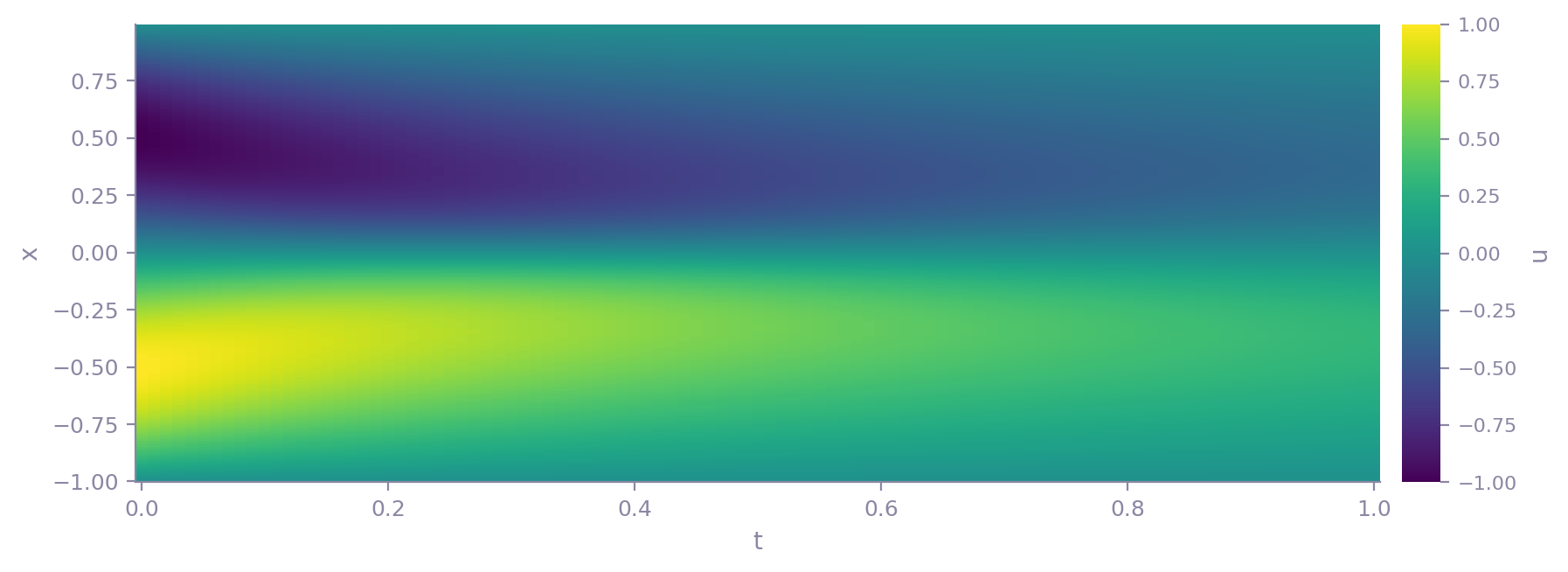

Heatmap of the Burgers field u(x, t) — The observed field over its physical spatial and time coordinates.

The equation returned by the run:

	Equation
Discovered	\(u_{t} = - 0.9986 u u_{x} + 0.09995 u_{xx}\)
Reference	\(u_t = -u\,u_x +0.1\,u_{xx}\)

Both terms and both coefficients match. The transformer proposes a whole equation at a time as a sequence of tokens, so no term was assembled from a candidate library. The terms come from the distribution the model learned over token sequences, and the coefficients from the least-squares fit of the selected equation.

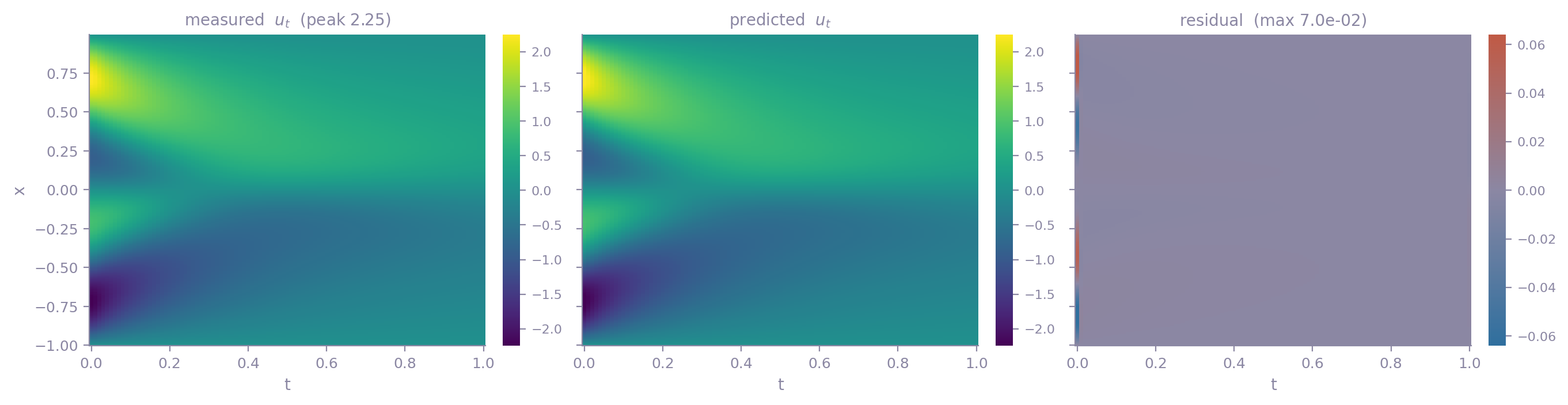

Measured u_t, predicted u_t, and the residual between them — The fitted derivative target, its equation prediction, and predicted minus measured values. The first two panels share a color scale; the residual has its own scale, with any clipping disclosed on the figure.

Example diagnostics

This run ends at reward 0.9904, with NMSE 4.4e-05.

The search is recorded as well. kd.VizEngine renders the per-epoch record; alongside the universal convergence curve, EqGPT contributes diagnostic panels of its own (the full list is under Visualization):

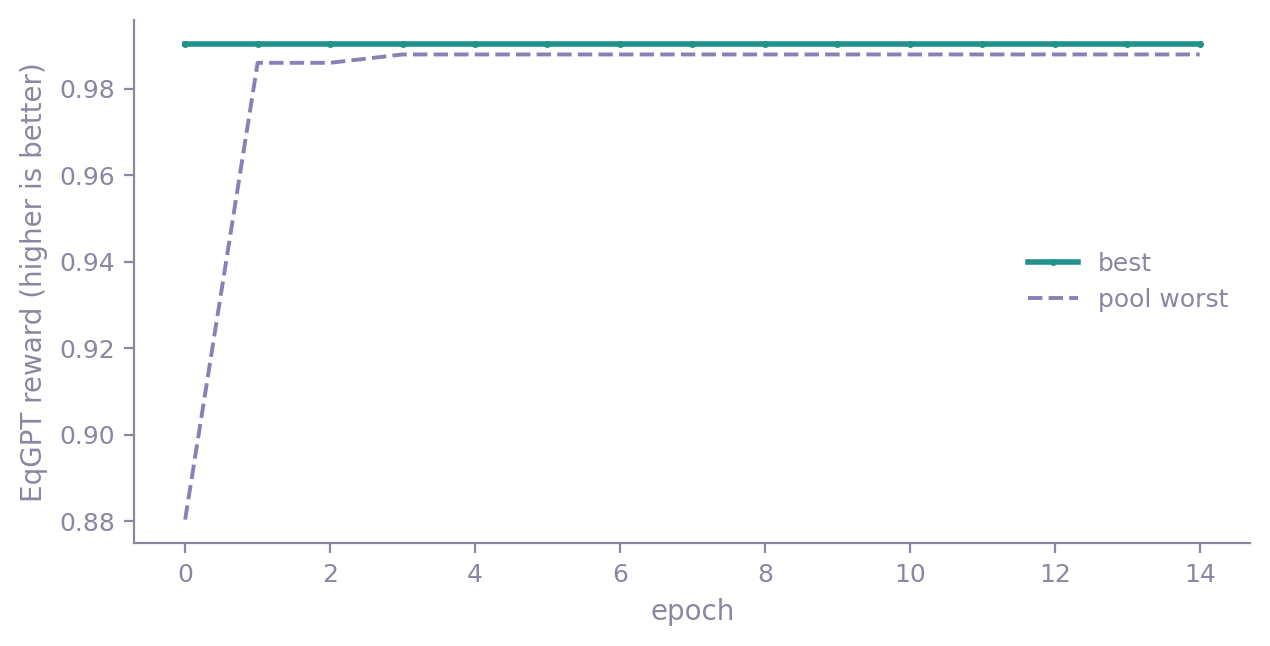

Best EqGPT reward and the pool's worst reward per epoch — The best native score is shown above the algorithm's population diagnostic, when one is recorded. Each panel retains its own score scale.

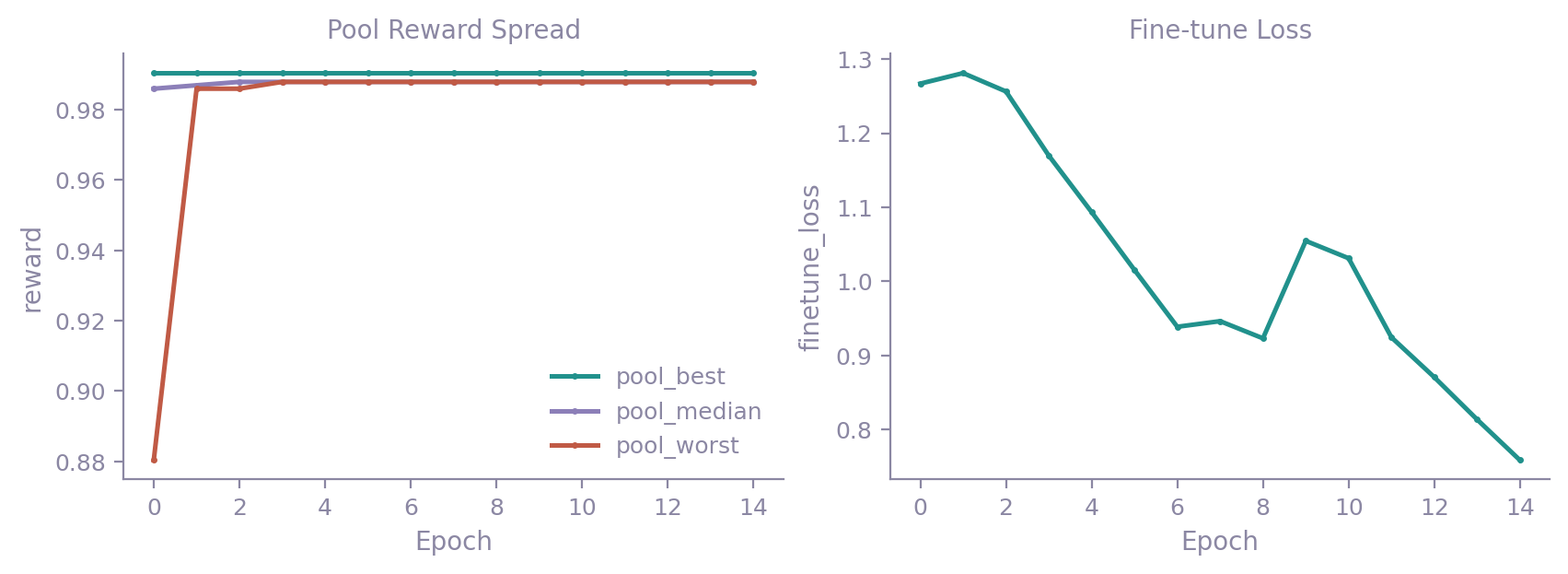

Pool reward spread and fine-tuning loss panels — The algorithm's diagnostic panels, using the same data and plot functions as the full report.

viz = kd.VizEngine(output_dir="out/burgers")
viz.render_all(model.result_, algorithm=model.algorithm_, dataset=dataset)

The multi-case wave-breaking run is shown under Examples.

Full report

Full HTML report from the same run, with all figures, captions and raw result data.
